The Leggenda version ( means Legend), is the Lightest TOP version, including all the options: 1000W drive unit, High Torque, Superhero Pack, Offroad version, and top components (ISIS shaft and crankarms, chainguard).

Lightest Leggenda includes anything you can ask for: 120Nm of torque, 1000W of nominal power ( 1200W peak), Maximum speed of 45km/h which can be reduced to 25km/h through the APP, Superhero pack to unlock a world of possibile customization. Control the motor with your heartbeat, tune the taming, set up the different assist levels, and much more.

Check all the pictures in the above gallery : in there you'll find the Option and pictures of the different mounts.

Configuration Selection Guide

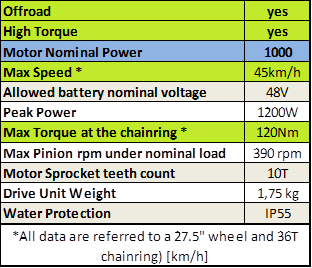

Motor Performance:

Chainguard: included

Offroad

1000W: legal speed is 32 km/h ( or 20mph) - When push the RACE button, the speed will become 45 km/h

The Offroad version is unrestricted when the RACE button on the APP is enabled, so the motor assistance won't cutoff at the above speed, but it will continue assisiting you. Since in many Countries that is not allowed, we recommend checking your laws and using your motor accordingly to those.

With the Offroad version and the Superhero Pack, you'll be able to switch on and off the speed limitation by the smartphone app, just by pressing the "RACE" button. So your Offroad version motor can operate as a "legal" motor when you want, but please note that operating a motor which can be unrestricted could be not legally used in regular road in your Country.

Torque

1000W High Torque: 120Nm

What's the difference between torque and power? Torque will push you uphill and give you acceleration on flat roads, while power will give you speed while going uphill or on flat roads.

High Torque option is completely legal.

Motor Mount

• Short Mount : fits classic triangular shaped frames, with the motor standing below the downtube. That's perfect when the downtube is perfectly straight and it can work with chainrings up to 36T. You can download the drawing here: Lightest Short Mount to make sure it matches your frame

• Medium Mount: fits classic triangular shaped frames, with the motor standing below the downtube. Themain difference from the Standard mount is the lenght : medium is about 40mm longer. That makes the chain stay higher on the chainring. That's perfect when the downtube is not perfectly straight or when you need a larger chainring than 36T. Also, this mount as an option for an additional spacer to give more stability and rigidity to the installation. That's a must for Fat Bikes. You can download the drawing here: Lightest Medium Mount to make sure it matches your frame

• Inframe Mount: fits the frames which have a bent downtube, the motor sits inside the frame if you have room for it . You can download the drawing here: Lightest Inframe Mount to make sure it matches your frame

• Hybrid Mount is the Medium Mount plus the motor bracket of the Long Mount. You can download the drawing here: Lightest Hybrid Mount.

• Long Mount: fits the frames which have a bent downtube, the motor sits below the downtube. You can download the drawing here: Lightest Long Mount to make sure it matches your frame

Not sure which one to choose? Send us some pictures by Whatsapp or by email : info@lightest.bike. Number: + 39 0376 390846

Battery Capacity

Our system is open, so it works with third party batteries. However we suggest to use our batteries because those have been designed to deliver at least 25Amp continuously and 35Amp current burst. You can select here your battery. Please consider the following:

• 220Wh 36V : this battery only fits the 250W motor, and it's recommended if you are well trained and don't need much or prolonged support from the motor. As an indication, this type of battery can reduce your effort of 50% for a two-hour trip.

• 580Wh 48V: this battery is compatible with all the motor powers. It's recommended when you plan to use the motor for medium to long trips, with climbs around 1000-1500 meters of altitude.

• 700Wh 48V: this battery is compatible with all the motor powers. It's recommended when you plan to use the motor for medium to long trips, with climbs around 1100-1700 meters of altitude.
• 960Wh 48V: this battery is compatible with all the motor powers. It's recommended when you plan to use the motor for long trips, with climbs around 2500-3000 meters of altitude.

All the batteries have a lock, keys, battery mount, high current BMS and high current cable with connector. Also, all batteries come with the battery charger.

Battery charger

• 2A charger allows you to fully charge your battery in the time below:
  • 220Wh in 4hours
  • 580Wh in 7 hours
  • 700Wh in 8 hours
  • 960Wh in 9 hours

• 7A charger allows you to fully charge your battery in the time below:
  • 220Wh NOT RECOMMENDED
  • 580Wh NOT RECOMMENDED
  • 700Wh NOT RECOMMENDED
  • 960Wh in 3 hours

Superhero pack to connect with your phone is included

• Superhero Pack: connect your smartphone with your Lightest ebike kit for superior customization. Select the power level, the motor response, get the anti-theft lock, control the system with your heartbeat, download your telemetry and much more.. see the below video.
• Superhero pack includes:
  • All advanced features of the app unlocked, such as
    • Motor assistance acceleration and deceleration ramps
    • Motor assistance curve customization
    • Walk Assist torque customization
    • Assist Mode: Natural VS Aggressive
    • Display customization
    • Push&GO
    • Assist level customization( choose from 3 to 10 assist levels and customize their assist percentage)
    • Anti-theft lock with unique PIN number
    • Race Button to unrestrict your motor if you choose the Offroad version
    • Heart-based assistance: you can just set your heart target BPM and the motor will adjust its assistance to match that
    • Light switch operation from the app
    • Telemetry: you can record and download all your trip data ( speed, current, power, torque, cadence, motor and controller temperature, heart BPM, distance, and much more) to your PC in a CSV format, put them in cool graphs to analyze your performance.
    • Smart Tuning: You can customize all the motor parameters, such as:
      • Watthour per km consumption.
      • Maximum torque
      • Maximum Input and Output power
      • Maximum battery current
      • Minimum cell undervoltage protection threshold
      • Maximum Assistance speed
      • Maximum throttle speed
    • Possiblity to connect the following accessories:
      • Brake sensor ( with customizable cutoff time and normally open vs normally closed operation)
      • Gear sensor ( with customizable cutoff time)
      • Cardio Belt : Let your heart select the assistance level for you.
      • Throttle( you can choose between half grip, full grip and thumb throttle)

Included hardware:

• Splitter cable to connect the above accessories directly on your handlebar
• Throttle ( you can choose between half grip and full grip)

Shockproof and waterproof Smartphone:

If you choose the Superhero Pack but you don't feel using your smartphone for checking all your parameters while riding, then you can get this smartphone. It's shockproof and waterproof at a very convenient price.

Phone holder
Crankarm spline Please choose here the crankarm interface you prefer:

• Square Taper
• ISIS

Bottom Bracket

• If you're familiar with bottom brackets, please indicate which one you have, otherwise we'll contact you as soon as we'll have received your purchase order to understand which configuration better fit your bike.

• BSA (British threaded)
• Pressfit: we'll need the dimensions. If you choose this option, we will send you Pressfit to BSA adapter. In this way, you'll be able to use the BSA threaded bottom bracket.

Example of Pressfit PF92 x 42mm adapter

• Other ( please choose this also if you don't know)

---

Not sure which option to choose? Contact us here or by Whatsapp : +39 0376 390846

---

Included Items in the motor kit:

Please note that the images provided are solely indicative of the product and may not precisely reflect the final item. Variations in color, texture, or design may occur
